HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack With Magnetics LPJD0743BFNL

Name: HFJV11G41L11RL 1000 BaseT RJ45 Vertical Jack With Magnetics LPJD0743BFNL
Brand: LINK-PP
Price: 0.09 USD

Quality HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack With Magnetics LPJD0743BFNL wholesale

Brand Name : LINK-PP

Model Number : LPJD0743BFNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : $0.09-$3.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Original : HFJV1-1G41-L11RL

Equivalent : LPJD0743BFNL

OperatingTemperature : 0 to 70

Samples : Free Available

Archivi Disponibil : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack With Magnetics LPJD0743BFNL

Halo Part Number	HFJV1-1G41-L11RL
LINK-PP Part Number	LPJD0743BFNL
Manufacturer	LINK-PP
Product Status	Active
Speed	1000 BASE-T
Number of Ports	Single Port
Orientation	180° Angle (Right)
Mounting Type	Through Hole
Cores per Port	8
Latch	Up
Shield EMI Tabs	Without
LED Color	Green/Green Leds
PCB Mount Angle	THT Solder
Operating Temperature	0°C ~ 70°C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"

HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack Dimension:

HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack With Magnetics LPJD0743BFNL

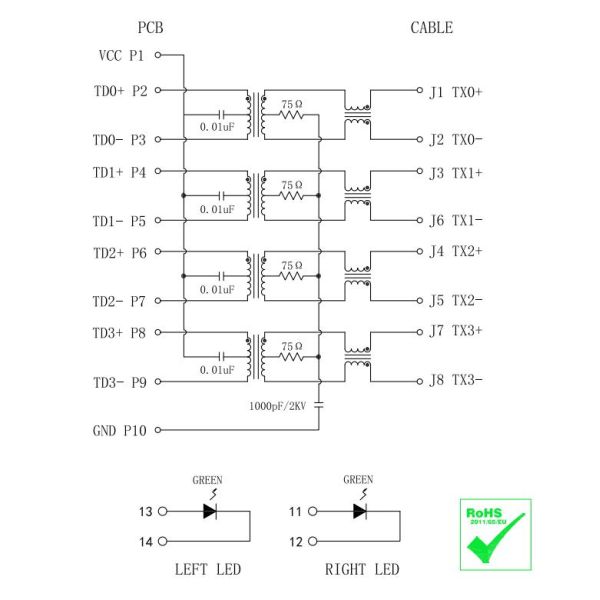

HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack With Magnetics circuit:

HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack With Magnetics LPJD0743BFNL

HFJV1-1G41-L11RL description:

1. HFJV1-1G41-L11RL 1000 Base-T RJ45 Vertical Jack
2. Halo HFJV1-1G41-L11RL Compatible LINK-PP LPJD0743BFNL
3. HFJV1-1G41-L11RL RJ45 Vertical Jack Green/Green LEDs

HFJV1-1G41-L11RL Similar Part Number:

HFJV1-1G41-L11RL	HFJV1-1G41-L12RL	HFJV1-1G41-L51RL
HFJV1-1G46RL	HFJV1-1G46-L11RL	HFJV1-1G46-L12RL
HFJV1-LTQ1-L11RL	HFJV1-LTQ1-L12RL	HFJV1-LTQ1-L14RL
