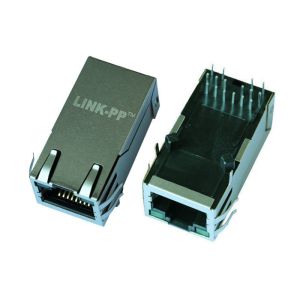

7499511611 | LPJK2069AONL Gigabit POE+ RJ45 Connector Jack
- 1x 10/100/1000Base Power Enable Rj45 LPJK2069AONL
- IEEE 802.3at Compatible to 7499511611
- 600mA Max@57VDC Continuous
- 720 Max@57VDC For 200 Milliseconds
- Suitable CAT5 & 6 FastEthernet Cable or better UTP
| Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics & PoE+ ,Orange&Green/Yellow LED,Tab UP,RoHS |
| LINK-PP Part Number | LPJK2069AONL |
| WE Part Number | 7499511611 |
| Application-Lan | ETHERNET(PoE+) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| Diodes | NO DIODES |
| LED Option | Orange&Green/Yellow LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.300 |
| Package Length (mm) | 33.02 |
| Package Width (Inches) | 0.654 |
| Package Width (mm) | 16.60 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
